Impregnated resin graphite bearing is a high performance bearing product, which combines the excellent properties of graphite materials with the curing properties of resin, and is made by a specific impregnation process.

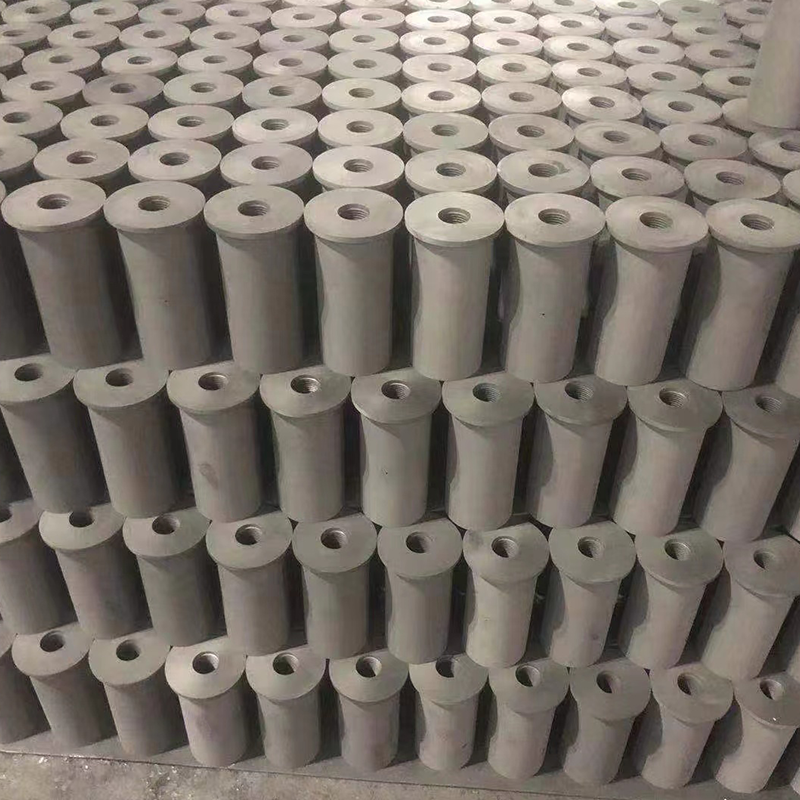

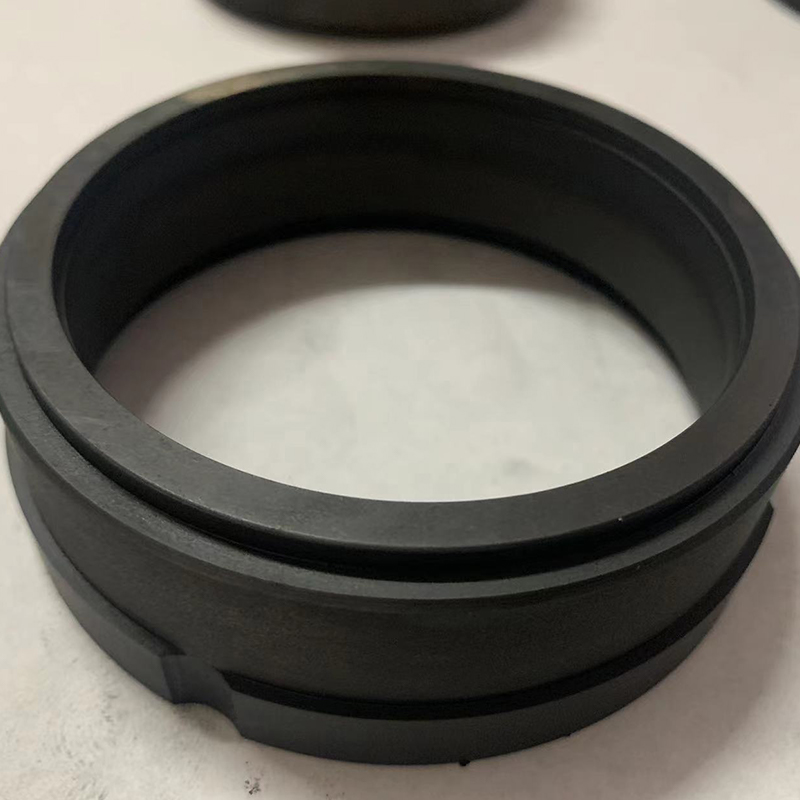

Product Introduction of Epoxy Impregnated Graphite Bearing
Impregnated resin graphite bearing is a high performance bearing product, which combines the excellent properties of graphite materials with the curing properties of resin, and is made by a specific impregnation process. These bearings show excellent performance in many industrial applications, especially where high wear resistance, low coefficient of friction, good self-lubrication, chemical stability and high temperature resistance are required.
Product Feature of Epoxy Impregnated Graphite Bearing
Graphite substrate: Graphite is known for its layered structure, and each layer is composed of hexagonal arranged carbon atoms, which is relatively easy to slide between layers, giving graphite excellent lubricity and wear resistance. The selected graphite material usually has high density and good load bearing capacity, providing strong support for the core of the bearing.
Resin impregnators: Commonly used resin types include phenolic resins, epoxies, polyimides, etc., which form extremely stable polymer networks after curing. The selection of resin needs to consider the final use temperature, chemical environment and specific performance requirements to ensure that good performance can be displayed under various working conditions.
Impregnation process: In a controlled environment, the graphite material is immersed in a specially formulated resin solution, using vacuum or positive pressure technology to ensure that the resin fully and evenly permeates every pore of the graphite.
Curing molding: The impregnated graphite parts are sent into the curing furnace and heated according to a strict heating curve, so that the resin is completely cured, forming a hard and stable matrix, so as to obtain the final mechanical strength and dimensional stability.
Performance Features And Advantages Of Epoxy Impregnated Graphite Bearing
High wear resistance and low friction: Thanks to the layered lattice structure of graphite, the bearing surface can form a smooth transfer film during friction, significantly reducing the wear of the contact surface and extending the service life.
Excellent self-lubrication: In situations where liquid lubricants cannot be used (such as high temperature, corrosive environment), the graphite particles inside the bearing can act as a solid lubricant to ensure the continuous operation of the bearing and reduce maintenance needs.
Excellent temperature resistance: The selected resin has excellent thermal stability, enabling the bearing to maintain performance at temperatures up to several hundred degrees Celsius.
Chemical stability: resin curing is inert to most chemical substances, coupled with the corrosion resistance of graphite itself, giving the bearing excellent chemical corrosion resistance, suitable for use in harsh media such as strong acid and alkali.
Application Field of Epoxy Impregnated Graphite Bearing
Chemical industry: In the presence of corrosive chemicals in pumps, valves and other parts, the bearing provides long-term reliable operation guarantee.
Aerospace: In extreme temperatures and environments that are difficult to maintain, such as rocket engines or satellite joints, these bearings are widely used for their lightweight and self-lubricating properties.
Electronics manufacturing: High-precision processing equipment and components, such as robotic arms in semiconductor manufacturing, rely on this bearing for precise control.
Impregnated resin graphite bearings play an irreplaceable role in a number of high-end industrial fields with its excellent performance, and continue to promote the development of related technologies and industries. With the continuous emergence of new materials and new technologies, this product will undoubtedly have broader development prospects and application fields.
FAQ
Q: What is resin impregnated graphite bearing?
A: Impregnated resin graphite bearing is a bearing that is treated by a special process and impregnated with resin into graphite material. This treatment makes the bearing have better corrosion resistance and insulation.
Q: What are the advantages of impregnated resin graphite bearings?
A: The advantages of impregnated resin graphite bearings include excellent corrosion resistance, good insulation properties, low friction coefficient and strong pressure bearing capacity. These characteristics make it widely applicable in a variety of applications.
Q: Where is the impregnated resin graphite bearing applicable?
A: Impregnated resin graphite bearings are suitable for highly corrosive environments, such as chemical, Marine and other fields, and it is also suitable for occasions that require insulation, such as electronics and electrical industries.
Q: What is the wear resistance of impregnated resin graphite bearings?
A: Impregnated resin graphite bearing wear resistance is better, resin impregnation enhances the hardness and wear resistance of the graphite material, so that the bearing can maintain better performance and life during operation.
Q: What is the difference between impregnated resin graphite bearings and metal bearings?
A: Impregnated resin graphite bearings have better corrosion resistance and insulation than metal bearings. At the same time, due to the self-lubricating properties of graphite materials, impregnated resin graphite bearings also have advantages in lubrication. However, metal bearings may have higher performance in some aspects, such as load bearing capacity and rigidity.
Q: How to guarantee the accuracy of impregnated resin graphite bearings?
A: The accuracy of impregnated resin graphite bearings is mainly guaranteed by the production process and quality control. In the production process, precision equipment and processes are used to ensure the dimensional accuracy and surface quality of bearings. At the same time, the strict quality control system will also check the quality of bearings.
Q: How to choose a suitable impregnated resin graphite bearing?
A: The selection of suitable impregnated resin graphite bearings needs to be determined according to the specific application and needs. Factors to consider include bearing size, load capacity, speed, working environment, etc. It is recommended to consult with professional bearing suppliers or engineers in the selection to ensure that the appropriate bearing products are selected.
